[Cs5500] Fwd: The structure of SCG as seen with Softwarenaut

[Karl Lieberherr]

I would like to bring Softwarenaut to your attention.
Below are two sample pictures that help you unterstand
how the classes are connected.

Use the tool to generate more pictures and share them
with the class.

-- Karl

---------- Forwarded message ----------
From: Mircea Filip Lungu <mircea.lungu at gmail.com>
Date: Wed, Aug 3, 2011 at 1:18 PM
Subject: The structure of SCG as seen with Softwarenaut
To: lieber at ccs.neu.edu


Hi Karl,
It was a pleasure discussing to you during your visit in Bern. As promised,
I attach some of the images that present the structure of SCG as
seen by Softwarenaut (http://www.inf.usi.ch/phd/lungu/softwarenaut/).
The tool is available for download (currently it is easier to install the
version for OS X than the ones for Windows and Linux but I plan to remedy
this soon).
Best regards,
Mircea.
-------------- next part --------------
A non-text attachment was scrubbed...

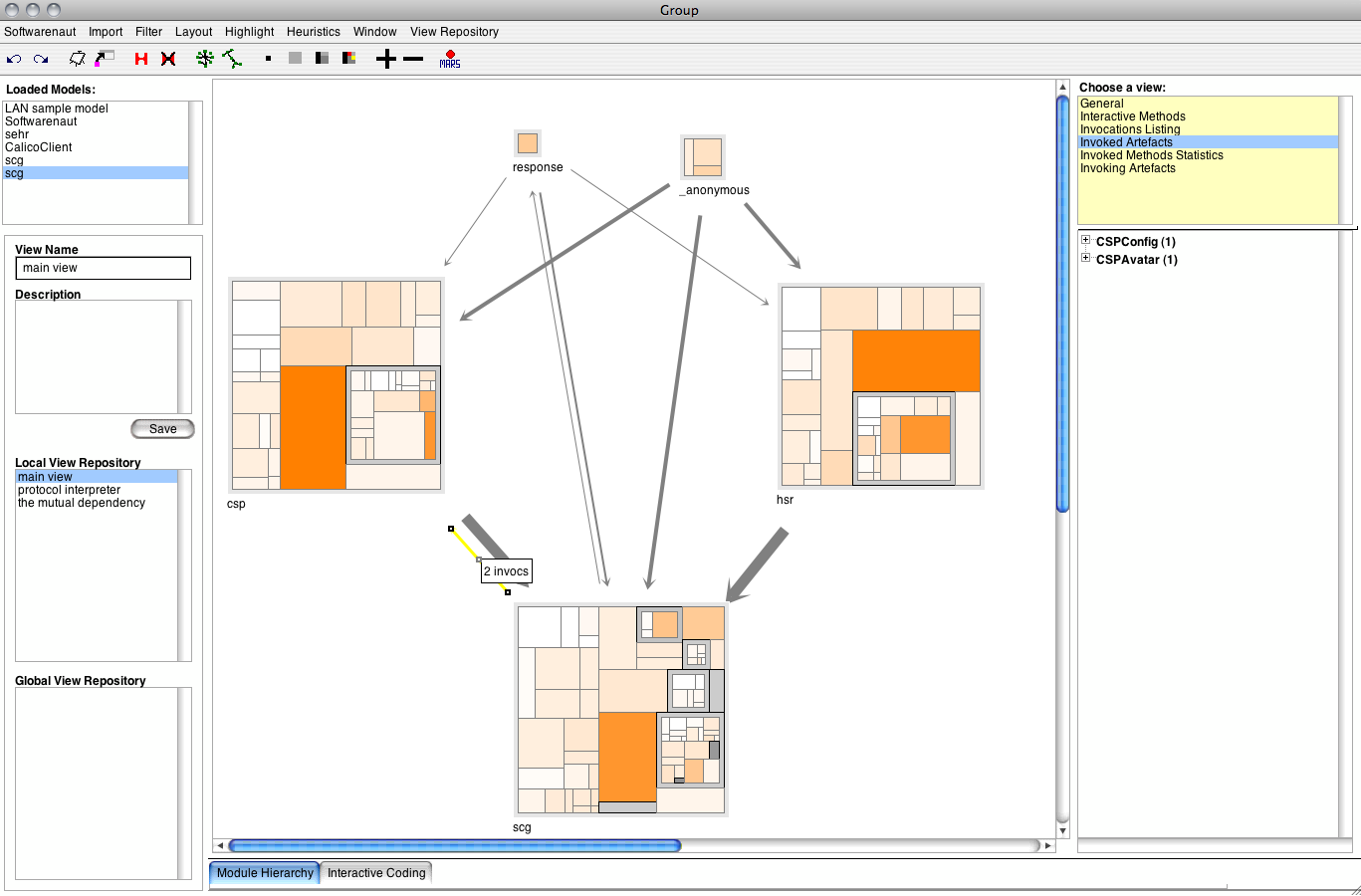

Name: SCG-MainView.png
Type: image/png
Size: 105688 bytes
Desc: not available
Url : http://lists.ccs.neu.edu/pipermail/cs5500/attachments/20110927/d8257348/attachment-0002.png
-------------- next part --------------
A non-text attachment was scrubbed...

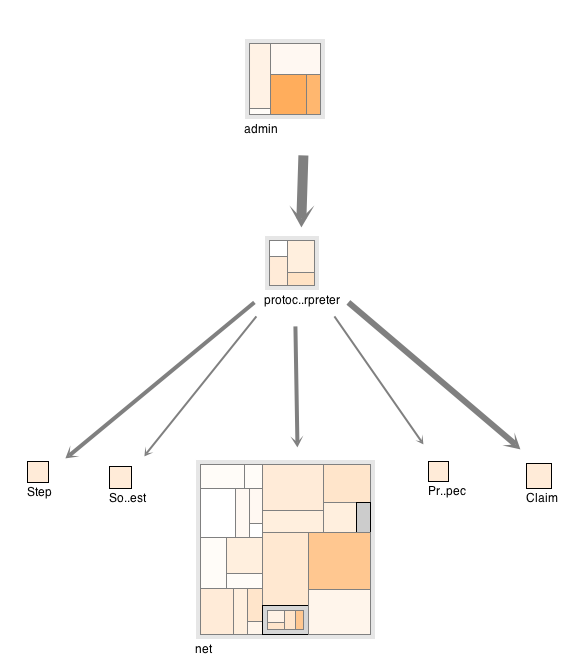

Name: SCG-ProtocolInterpreter.png
Type: image/png
Size: 28223 bytes
Desc: not available
Url : http://lists.ccs.neu.edu/pipermail/cs5500/attachments/20110927/d8257348/attachment-0003.png
